Stainless Steel 310/310S Forged Fittings Manufacturer and Supplier in Chennai, India
Nestled in Chennai, India, we proudly stand as a top manufacturer and supplier of Stainless Steel 316/316L Forged Fittings. Our products are crafted with care, specifically designed to thrive in corrosive and high-pressure settings. Renowned for their outstanding resistance to chloride-induced corrosion and impressive mechanical strength, these forged fittings are perfect for critical applications in various industries, including chemical processing, marine, oil and gas, and pharmaceuticals. We ensure that our SS 316/316L forged fittings meet international standards, reflecting our unwavering commitment to quality, timely delivery, and customer satisfaction. Whether serving local or global clients, we provide reliable stainless steel piping solutions that you can count on.
Table of Contents
Stainless Steel 316 Threaded Fitting Price List in Chennai, UNS S31600 Stainless Steel Forged Fittings Supplier in India, Stainless Steel 316L High Pressure Forged Fittings Exporter in Chennai, Stainless Steel 316 Hex Plug Supplier in Chennai, SS 316 Threaded Pipe Elbow Exporter in Chennai, SS UNS S31603 Pipe Nipple Size Chart, Stainless Steel 316L Forged Fittings Price in India, SS 316 Screwed Fittings in Chennai, Stainless Steel 1.4404 Forged Fittings Supplier in Chennai, Stainless Steel 316L Hexagonal Plug Stockist in India, Stainless Steel 316L Forged Fittings Exporter in India
Stainless Steel 316/316L Forged Fittings Specification
| Specification | ASTM A182 / ASME SA182 |
| Dimension Standard | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size | 1/8″ NB to 4″ NB |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Pressure-Temperature Class | Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS. |
Our Stainless Steel 316/316L Forged Fittings are made up of 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, which significantly boosts their resistance to pitting and crevice corrosion in chloride-rich environments. The key distinction between 316 and 316L lies in their carbon content—316L has a maximum of 0.03% carbon, making it a better fit for welding applications. These fittings boast a minimum tensile strength of 515 MPa, yield strength of 205 MPa, and an elongation of 40%. We offer a variety of types, including forged elbows, tees, couplings, unions, caps, and crosses, all engineered for high strength, leak-proof integrity, and long-lasting performance.
Stainless Steel 316/316L Forged Fittings Chemical Compostion
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
Stainless Steel 316/316L Forged Fittings Mechanical Properties
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
SS 316 Socket Weld Fittings Exporter in India, DIN 1.4401 Stainless Steel Union Price List in Chennai, Stainless Steel 316 Forged Fittings Supplier in India, ANSI B16.11 Stainless Steel 316L Forged Fittings Exporter in Chennai, Stainless Steel 316 Forged Elbow Exporter in Chennai, Stainless Steel 316 Forged Tee in India, SS 316 Socket Weld Fittings Size Chart, Stainless Steel 316 Coupling Price in India, UNS S31600 Stainless Steel Forged Threaded 90 deg. Elbow Weight Chart, Stainless Steel 316L Stainless Steel Cross Trader Supplier in Chennai, Stainless Steel 316 Socket weld Fittings Stockist in India
Largest Stainless Steel 316/316L Forged Fittings Supplier in Chennai, India
Meet Fittings is a leading supplier of Stainless Steel 316/316L Forged Fittings in Chennai, India. We offer an extensive range of Stainless Steel 316/316L Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
If You Are Looking To Buy High Quality
Stainless Steel 316/316L Forged Fittings Equivalent Grade
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Why Choose Stainless Steel 316/316L Forged Fittings from Meet Fittings?
Choose Stainless Steel 316/316L Forged Fittings from Meet Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Stainless Steel UNS S31603 Full Coupling Exporter in India, SS 316 Forged Socket weld Fittings Sizes in mm, Stainless Steel 316 Forged Fittings Manufacturer in Chennai, Stainless Steel DIN 1.4404 Threaded Fittings Supplier in Chennai, ASME SA182 Stainless Steel 316L Forged Fittings Price List in Chennai, SUS 316 Forged Union Distributor in Chennai, SS UNS S31603 Forged Fittings Supplier in Chennai, Stainless Steel 316 Forged Cap Distributor in India
Customer Support
Largest Inventory
On Time Deliveries
ISO Certified
Stainless steel 316/316L forged fittings provide exceptional corrosion resistance, especially in high chloride environments, making them ideal for marine, chemical, and pharmaceutical industries They are highly resistant to pitting, crevice corrosion, and stress corrosion cracking of the. These materials provide excellent strength, durability and high heat resistance, providing long-term performance under extreme conditions. In addition, the 316/316L alloy offers excellent weldability, formability, and ease of maintenance. With their ability to withstand harsh environmental conditions, they ensure reliability, safety and longevity in critical applications, reducing the need for frequent replacement or maintenance.

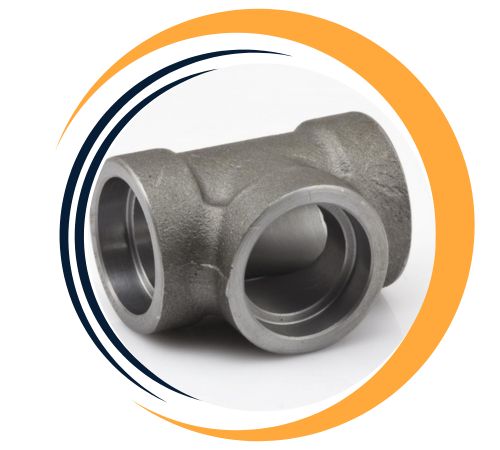

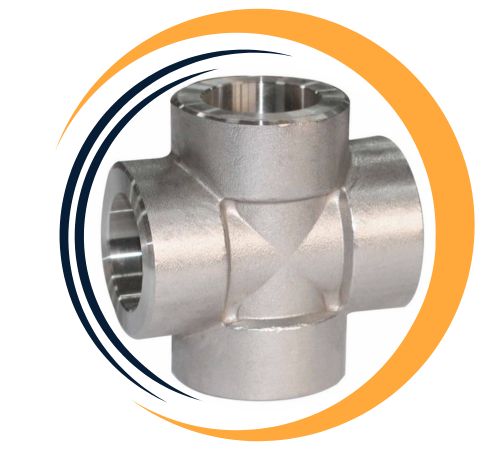

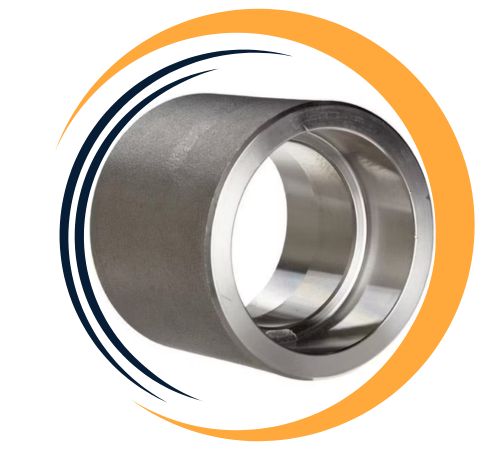

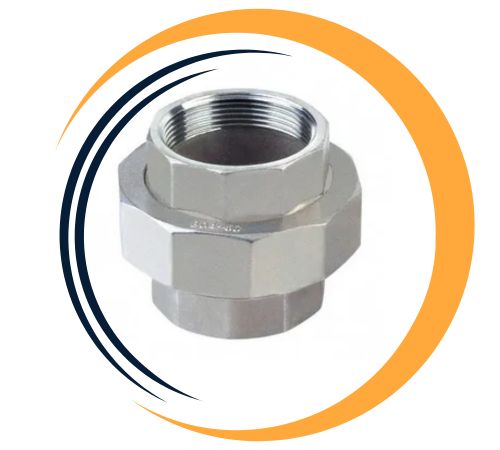

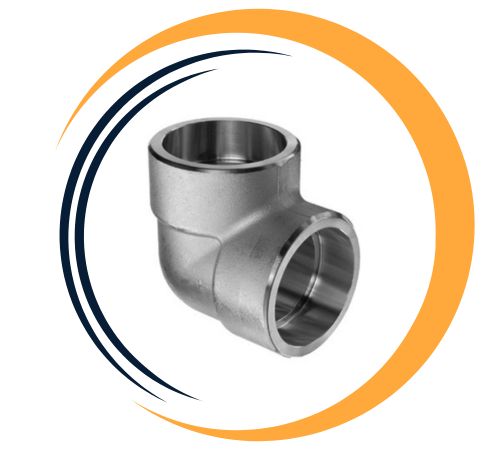

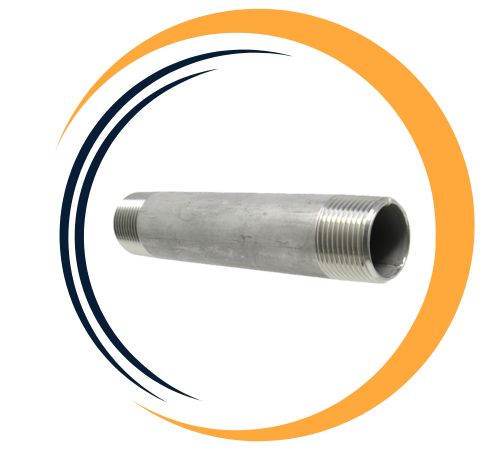

Types of Stainless Steel 316/316L Forged Fittings
Are Custom Sizes Available for Stainless Steel 316/316L Forged Fittings?
Yes, custom sizes for Stainless Steel 316/316L Forged Fittings are available at Meet Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@meetfitings.co.in
Dimensions of SS 316/316L Forged Fittings
| ASME b16.9 Fittings Normal Pipe Size | ANSI b16 9 Pipe Fitting O D Y | Wall Thickness T (Pipe Elbow Sch.) | LR 45 Deg Elbows Centre to Face B | SR 45 Deg Elbows Weight | LR 90 Deg Elbows Centre to Face A | LR 90 Deg Elbows Weight In Below | SR 90 Deg Elbows Centre to Face A | SR 90 Deg Elbows Weight In Below | ||
| mm | inch | mm | mm | Schedule | mm | kg | mm | kg | mm | kg |
| 15 | 1/2” | 21.3 | 2.78 | STD | 15.9 | 0.04 | 38.1 | 0.08 | – | – |
| 3.73 | X.S | 15.9 | 0.05 | 38.1 | 0.10 | – | – | |||
| 20 | 3/4” | 26.7 | 2.87 | STD | 11.1 | 0.04 | 28.6 | 0.08 | – | – |
| 3.91 | X.S | 11.1 | 0.05 | 28.6 | 0.11 | – | – | |||
| 25 | 1” | 33.4 | 3.38 | STD | 22.2 | 0.09 | 38.1 | 0.15 | 25.4 | 0.11 |
| 4.55 | X.S | 22.2 | 0.11 | 38.1 | 0.19 | 25.4 | 0.14 | |||
| 32 | 11/4” | 42.2 | 3.56 | STD | 25.4 | 0.14 | 47.6 | 0.28 | 31.75 | 0.18 |
| 4.85 | X.S | 25.4 | 0.2 | 47.6 | 0.39 | 31.75 | 0.24 | |||
| 40 | 11/2” | 48.3 | 3.68 | STD | 28.6 | 0.2 | 57.1 | 0.4 | 38.1 | 0.26 |
| 5.08 | X.S | 28.6 | 0.25 | 57.1 | 0.5 | 38.1 | 0.35 | |||
| 50 | 2” | 60.3 | 3.91 | STD | 34.9 | 0.36 | 76.2 | 0.72 | 50.8 | 0.5 |
| 5.54 | X.S | 34.9 | 0.5 | 76.2 | 1.0 | 50.8 | 0.68 | |||
| 65 | 21/2” | 73.0 | 5.16 | STD | 44.4 | 0.73 | 95.2 | 1.46 | 63.5 | 0.95 |
| 7.01 | X.S | 44.4 | 0.91 | 95.2 | 1.82 | 63.5 | 1.27 | |||
| 80 | 3” | 88.9 | 5.49 | STD | 50.8 | 1.1 | 114.3 | 2.18 | 76.2 | 1.45 |
| 7.62 | X.S | 50.8 | 1.45 | 114.3 | 2.86 | 76.2 | 1.95 | |||
| 100 | 4” | 114.3 | 6.02 | STD | 63.5 | 2.1 | 152.4 | 4.2 | 101.6 | 2.8 |
| 8.56 | X.S | 63.5 | 2.9 | 152.4 | 5.7 | 101.6 | 3.9 | |||
| 125 | 5” | 141.3 | 6.65 | STD | 79.4 | 3.4 | 190.0 | 6.8 | 127.0 | 4.8 |
| 9.5 | X.S | 79.4 | 5.0 | 190.0 | 10.0 | 127.0 | 6.5 | |||
| 150 | 6” | 168.3 | 7.11 | STD | 95.2 | 5.1 | 229.0 | 10.1 | 152.4 | 6.8 |
| 10.97 | X.S | 95.2 | 7.7 | 229.0 | 15.3 | 152.4 | 10.2 | |||
| 200 | 8” | 219.1 | 8.18 | STD | 127.0 | 10.2 | 305.0 | 20.4 | 203.0 | 13.6 |
| 12.7 | X.S | 127.0 | 15.5 | 305.0 | 30.9 | 203.0 | 20.9 | |||
| 250 | 10” | 273.9 | 9.27 | STD | 159.0 | 18.1 | 381.0 | 36.1 | 254.0 | 24.1 |
| 12.7 | X.S | 159.0 | 24.4 | 381.0 | 48.8 | 254.0 | 32.5 | |||
| 300 | 12” | 323.9 | 9.52 | STD | 190.0 | 26.6 | 457.0 | 53.1 | 305.0 | 35.4 |
| 12.7 | X.S | 190.0 | 35.0 | 457.0 | 70.0 | 305.0 | 46.7 | |||
| 350 | 14” | 355.6 | 9.52 | STD | 222.0 | 34.1 | 533.0 | 68.1 | 356.0 | 45.4 |
| 12.7 | X.S | 222.0 | 45.0 | 533.0 | 90.0 | 356.0 | 60.0 | |||
| 400 | 16” | 406.4 | 9.52 | STD | 254.0 | 45.0 | 610.0 | 89.3 | 406.0 | 59.5 |
| 12.7 | X.S | 254.0 | 59.0 | 610.0 | 118.0 | 406.0 | 78.7 | |||
| 450 | 18” | 457.0 | 9.52 | STD | 286.0 | 56.5 | 686.0 | 113.0 | 457.0 | 75.6 |
| 12.7 | X.S | 286.0 | 75.0 | 686.0 | 150.0 | 457.0 | 100.0 | |||
| 500 | 20” | 508.0 | 9.52 | STD | 318.0 | 85.0 | 762.0 | 140.0 | 508.0 | 93.5 |
| 12.7 | X.S | 318.0 | 112.5 | 762.0 | 186.0 | 508.0 | 124.0 | |||
| 600 | 24” | 610.00 | 9.52 | STD | 381.0 | 101.5 | 914.0 | 203.0 | 610.0 | 135.0 |
| 12.7 | X.S | 381.0 | 134.5 | 914.0 | 269.0 | 610.0 | 179.0 | |||
Size of SS 316/316L Forged Fittings
| NPS (inch) | Pipe Schedule. | OD (inch) | Wall Thick. (in) | Temperature | ||||
| 100 Fitting | 200 Fitting | 300 Fitting | 400 Fitting | 500 Fitting | ||||
| Allowable Stress | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 1.315 | 0.133 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 1.315 | 0.179 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 1.315 | 0.250 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 1.900 | 0.145 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 1.900 | 0.200 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 1.900 | 0.281 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 2.375 | 0.154 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 2.375 | 0.218 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 2.375 | 0.344 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 3.500 | 0.216 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 3.500 | 0.300 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 3.500 | 0.438 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 4.500 | 0.237 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 4.500 | 0.337 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 4.500 | 0.531 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 5.563 | 0.258 | 965 | 965 | 965 | 896 | 832 |
| 80 | 5.563 | 0.375 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 5.563 | 0.625 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 6.625 | 0.280 | 877 | 877 | 877 | 814 | 756 |
| 80 | 6.625 | 0.432 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 6.625 | 0.719 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 8.625 | 0.322 | 771 | 771 | 771 | 716 | 665 |
| 80 | 8.625 | 0.500 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 8.625 | 0.906 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 10.750 | 0.365 | 699 | 699 | 699 | 649 | 603 |
| 80 | 10.750 | 0.594 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 10.750 | 1.125 | 2289 | 2289 | 2289 | 2124 | 1974 | |
ASTM A182 SS 316 End Cap Supplier in Chennai, Stainless Steel 316 Forged Pipe Fittings Weight Chart, Stainless Steel 316L Welding Boss Exporter in India, Stainless Steel 316 High Pressure Forged Fitting Manufacturer in Chennai, WERKSTOFF NR. 1.4401 Threaded Cross Price List in Chennai, Stainless Steel 316 Threaded Fittings Sizes in mm, Stainless Steel 316L Forged Fittings Distributor in Chennai, Stainless Steel 316L 180 Deg. Street Elbow in India, Stainless Steel 316 Forged Tee Distributor in India.
Application Industry of Stainless Steel 316/316L Forged Fittings
When it comes to corrosive and high-pressure applications, our Stainless Steel 316/316L Forged Fittings are the go-to choice. They find extensive use in marine engineering, pharmaceuticals, chemical and food processing, and offshore oil and gas industries. Their exceptional pitting and corrosion resistance make them particularly well-suited for environments with acids, chlorides, and saline conditions. SS 316L is especially advantageous in welded structures where intergranular corrosion resistance is crucial. Thanks to their forged construction, these fittings deliver enhanced strength and reliability in pressure systems, making them the preferred option for pumps, valves, piping networks, and heat exchangers in demanding service conditions.
