Inconel Pipe Fittings Manufacturer and Supplier in Chennai, India

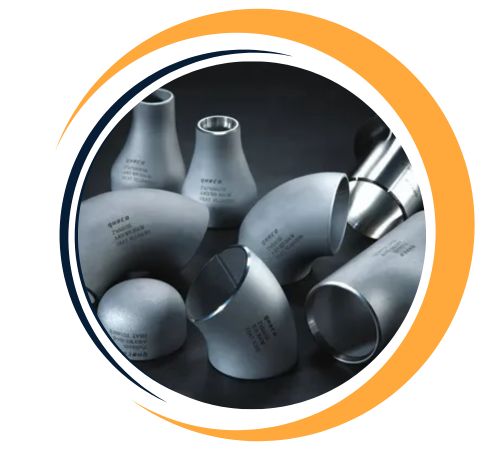

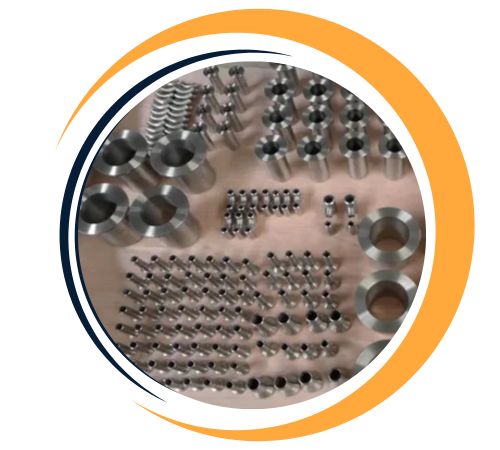

Fittings Meet, Chennai, India-based, is an authorized maker and supplier of *Inconel Pipe Fittings*, providing high-quality piping parts for uses requiring superior strength, heat resistance, and corrosion resistance. These pipe fittings are produced from high-performance Inconel alloys like Inconel 600, 601, 625, and 718—every one of which is renowned for its capability to resist harsh temperatures and hostile environments. Meet Fittings provides a vast array of Inconel pipe fittings such as elbows, tees, reducers, crosses, and caps, all carefully designed to conform to international standards. These industries involving aerospace, power generation, marine, chemical process, and oil & gas rely on these fittings for long-term, trouble-free operation.
Table of Contents

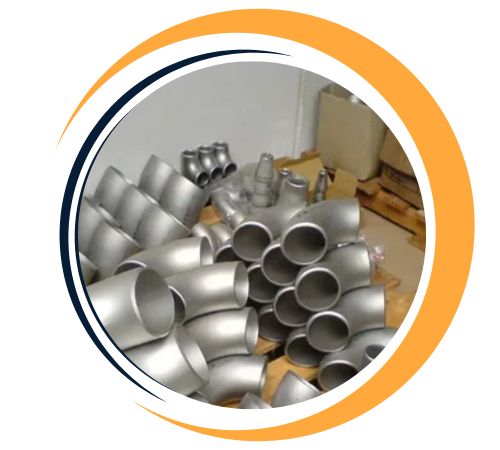

ASME SB366 Inconel Tees In India, Inconel Alloy Buttweld 90 deg. Elbow Fittings In Chennai, Inconel Long / Short Radius Elbow Fittings In Chennai, Inconel Alloy Seamless Pipe Fittings In Chennai, Inconel 5D Elbow India, Inconel Swedge Nipple/Pipe Nipple/Reducing Nipple Exporter in Chennai, Inconel Pipe Fittings Manufacturer In India.
Inconel Pipe Fittings Specification
| Specification | ASTM B366, ASTM SB 366, ASTM B564, ASME SB564 |
| Grade | Inconel 600 (UNS N06600, Alloy 600, 2.4816), Inconel 601 (UNS N06601, Alloy 601, 2.4851), Inconel 625 (UNS N06625, Alloy 625, 2.4856), Inconel 800 (UNS N08800, Alloy 800) |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range | ½”NB to 24″NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
Inconel Pipe Fittings are nickel-chromium alloys usually supplemented with molybdenum, iron, cobalt, and niobium, depending on grade. These materials are responsible for elevated tensile strength (as high as 930 MPa), good creep and rupture resistance, and very good oxidation and corrosion resistance even at temperatures as high as 1000°C. Fittings have chloride-induced stress corrosion cracking, pitting, and carburization resistance and are suitable for use in both high-pressure and high-temperature conditions.
Inconel Pipe Fittings Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
Inconel Pipe Fittings Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |

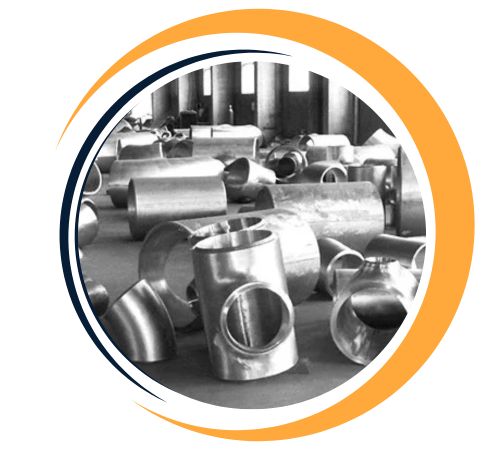

ASTM B366 Inconel Buttweld Fittings In India, Inconel Alloy Pipe Fitting In Chennai, ASME/ANSI B16.9 Buttweld Elbow Fittings In Chennai, Inconel Seamless Pipe Fitting Chennai, Inconel Alloy Welded Pipe Fittings Manufacturers in India, Inconel Reducer Chennai, Inconel Alloy Welded Pipe Fittings Supplier in India,
Largest Inconel Pipe Fittings Supplier in Chennai, India
Meet Fittings is a leading supplier of Inconel Pipe Fittings in Chennai, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
If You Are Looking To Buy High Quality
Inconel Pipe Fittings Equivalent Grade
| STANDARD | WNR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
| Inconel 718 | 2.4668 | N07718 | – | – | – | – | – |
Why Choose Inconel Pipe Fittings from Meet Fittings?
Inconel Pipe Fittings from Meet Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Inconel Pipe Fittings Dimensions Chart
| NOMINAL PIPE SIZE | ALL FITTINGS | ALL FITTINGS | 180 DEG RETURN BENDS | REDUCERS | ELBOWS AND TEES | 180 DEG RETURN BENDS | CAPS |
|---|---|---|---|---|---|---|---|
| NPS | ID at End (1), (3), (4) | OD at Bevel (1), (2) | Centre-to- Centre O | Overall Length H | Centre -to- End Dimension A, B, C, M | Alignment of Ends U | Overall Length E |
| ½ to 2½ | 0.003 | 0.006 -0.003 | 0.025 | 0.006 | 0.006 | 0.003 | 0.012 |
| 3 to 3 ½ | 0.006 | 0.006 | 0.025 | 0.006 | 0.006 | 0.003 | 0.012 |
| 4 | 0.006 | 0.006 | 0.025 | 0.006 | 0.006 | 0.003 | 0.012 |
| 5 to 8 | 0.006 | 0.009 -0.006 | 0.025 | 0.006 | 0.006 | 0.003 | 0.025 |
| 10 to 18 | 0.012 | 0.016 -0.012 | 0.038 | 0.009 | 0.009 | 0.006 | 0.025 |
| 20 to 24 | 0.019 | 0.025 -0.019 | 0.038 | 0.009 | 0.009 | 0.006 | 0.025 |
| 26 to 30 | 0.019 | 0.025 -0.019 | … | 0.019 | 0.012 | … | 0.038 |
| 32 to 48 | 0.019 | 0.025 -0.019 | … | 0.019 | 0.019 | … |

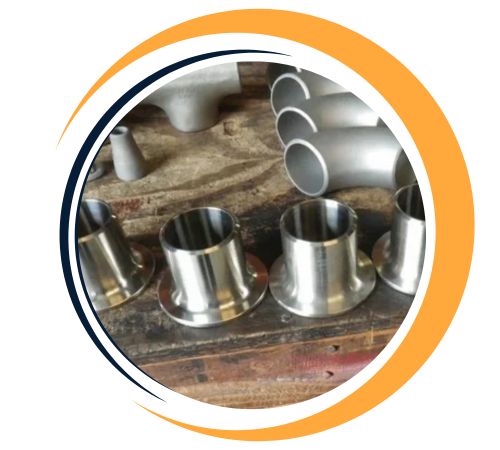

Inconel Pipe Fittings exporter in Uk, inconel buttweld fitting suppliers In Chennai, suppliers and exporters of inconel pipe elbow In Chennai, inconel elbow – short radius prices In Chennai, inconel alloy concentric reducer exporter India, inconel eccentric reducer In Chennai, inconel 3D elbow Fittings In India, inconel pipe fittings In India, inconel stub ends suppliers In Chennai, India.
Customer Support
Largest Inventory
On Time Deliveries
ISO Certified
Inconel pipe fittings offer numerous advantages, making them ideal for demanding environments. Their exceptional resistance to oxidation, corrosion, and high temperatures ensures durability in extreme conditions. These fittings maintain mechanical strength and stability across a wide temperature range, reducing the risk of deformation or failure. Inconel’s ability to withstand high-pressure environments makes it suitable for critical applications in aerospace, chemical processing, and power plants. Additionally, the alloy resists cracking under thermal and mechanical stress, enhancing reliability and longevity. Low maintenance requirements further contribute to their cost-effectiveness over time.
Inconel Pipe Fittings Size Chart
Nominal Pipe Size | 45° Elbow | 90° Elbow | OD | 180° Returns | ||||
(inch.) | LR | SR | LR | LR | ||||
Radius (inch.) | Center to Face (inch.) | Center to Face (inch.0) | Center to Face (inch.0) | (inch) | (millimeter) | Back to face (inch.) | Center to Center (inch.) | |
1/2 | 5/8 | – | 1 1/2 | 0.0840 | 21.03 | 1 7/8 | 2 | |
3/4 | 7/16 | – | 1 1/8 | 1.0050 | 26.07 | 1 11/16 | 2 1/4 | |
1 | 7/8 | 1 | 1 1/2 | 1.0315 | 33.04 | 2 3/16 | 3 | |
1 1/4 | 1 | 1 1/4 | 1 7/8 | 1.0660 | 42.02 | 2 3/4 | 3 3/4 | |
1 1/2 | 3 | 1 1/8 | 1 1/2 | 2 1/4 | 1.0900 | 48.03 | 3 1/4 | 4 1/2 |
2 | 4 | 1 3/8 | 2 | 3 | 2.0375 | 60.03 | 4 3/16 | 6 |
2 1/2 | 5 | 1 3/4 | 2 1/2 | 3 3/4 | 2.0875 | 73.00 | 5 3/16 | 7 1/2 |
3 | 6 | 2 | 3 | 4 1/2 | 3.0500 | 88.09 | 6 1/4 | 9 |
3 1/2 | 7 | 2 1/4 | 3 1/2 | 5 1/4 | 4.0000 | 101.06 | 7 1/4 | 10 1/2 |
4 | 8 | 2 1/2 | 4 | 6 | 4.0500 | 114.03 | 8 1/4 | 12 |
5 | 10 | 3 1/8 | 5 | 7 1/2 | 5.0563 | 141.03 | 10 5/16 | 15 |
6 | 12 | 3 3/4 | 6 | 9 | 6.0625 | 168.03 | 12 5/16 | 18 |
8 | 12 | 5 | 8 | 12 | 8.0625 | 219.01 | 16 5/16 | 24 |
10 | 15 | 6 1/4 | 10 | 15 | 10.0750 | 273.01 | 20 3/8 | 30 |
12 | 18 | 7 1/2 | 12 | 18 | 12.0750 | 323.09 | 24 3/8 | 36 |
Types of Inconel Pipe Fittings
Are Custom Sizes Available for Inconel Pipe Fittings?
Yes, custom sizes for Inconel Pipe Fittings are available at Meet Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@meetfitings.co.in.

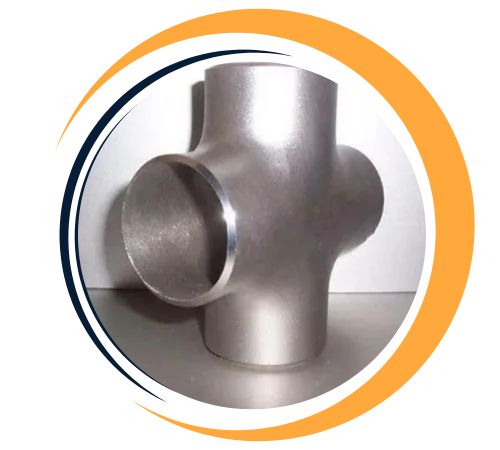

ASME SB366 Inconel Tees In India, Inconel Alloy Buttweld 90 deg. Elbow Fittings In Chennai, Inconel Long / Short Radius Elbow Fittings In Chennai, Inconel Alloy Seamless Pipe Fittings In Chennai, Inconel 5D Elbow India, Inconel Swedge Nipple/Pipe Nipple/Reducing Nipple Exporter in Chennai, Inconel Pipe Fittings Manufacturer In India, distributors of inconel cross in different schedules and sizes India, ansi B16.9 buttweld fittngs supplier in Chennai, inconel asme B16.28 buttweld elbow price In India, astm b366 inconel 5d elbow price list In India.
Application Industry of Inconel Pipe Fittings
Inconel Pipe Fittings are applied in the most severe and corrosive services, such as heat exchangers, pressure vessels, chemical reactors, marine exhaust systems, nuclear reactors, gas turbines, and offshore platforms. Their high mechanical and metallurgical stability makes them leak-proof, corrosion-resistant, and long-lasting in hostile environments. These fittings are particularly preferred in industries that demand safe and efficient fluid handling under extreme conditions, offering durability, performance, and low maintenance for critical piping infrastructure.
