SMO 254 Buttweld Fittings Manufacturer and Supplier in Chennai, India

Based in Chennai, India, Meet Fittings is a leading producer and distributor of *SMO 254 Buttweld Fittings*, providing high-performance piping solutions for severely corrosive environments. SMO 254 is a high-alloy austenitic stainless steel that has superior resistance to pitting, crevice corrosion, and stress corrosion cracking, particularly under chloride-rich and acidic environments. Meet Fittings produces a vast variety of buttweld fittings like elbows, tees, reducers, and caps, intricately designed to conform to international standards of quality. They are applied extensively in offshore oil & gas industry, desalination, chemical processing, and pulp & paper industry where higher corrosion resistance is imperative.

SMO 254 Pipe Elbow In India, SMO 254 Pipe Fittings Chennai, SMO 254 Buttweld Elbow Chennai, SMO S31254 Seamless Fittings Exporter Chennai, SMO 254 Stainless Steel 1.4547 Butt Weld Pipe Fittings in India, SMO 254 Two Joint Pipe Fittings Chennai, 254 SMO Welded Fittings Manufacturers in India, SMO 254 Buttweld Fittings In India, ASTM A240 WP3 254 SMO Buttweld Fittings Supplier in Chennai, India.

SMO 254 Buttweld Fittings Specification

Specifications : ASTM A403 / ASME SA403

Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : 3/4″ – 12″

Type : Seamless / Welded / Fabricated

Schedule : Sch 5 TO Sch XXS.

Thickness : 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.

SMO 254 Buttweld Fittings are manufactured from high-alloy austenitic stainless steel, consisting mainly of 20-22% chromium, 18-20% nickel, 6-7% molybdenum, trace amounts of nitrogen, copper, and other elements These materials are pitting, crevice corrosion , chloride stress corrosion cracking Provides excellent rise against both. Mechanical properties include tensile strength of 620-830 MPa, yield strength of 290 MPa, and elongation of 40-50%. Ideal for harsh environments, especially in the marine and chemical industries, SMO 254 offers excellent strength and corrosion resistance.

SMO 254 Buttweld Fittings Chemical Composition

Grade	%	Ni	Cr	Mo	Cu	N	C	Mn	Si	P	S
SMO 254	Min.	17.5	19.5	6	0.5	0.18
SMO 254	Max.	18.5	20.5	6.5	1	0.22	0.02	1	0.8	0.03	0.01

SMO 254 Buttweld Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
SMO 254	8.0 g/cm3	1320-1390 ℃	650	300	35 %

ASTM A240 SMO 254 Buttweld Fittings Cross in India, SMO 1.4547 Buttweld Pipe Fittings Chennai, SMO 254 Stainless Steel 254 Butt Weld Pipe Cap Chennai, SMO 254 Eccentric Reducer Chennai, SMO 254 Equal Tee India, 254 SMO Reducer in Chennai, SMO 254 SR Elbow Exporter in India,

Largest SMO 254 Buttweld Fittings Supplier in Chennai, India

SMO 254 Buttweld Fittings consist of around 20% of chromium, 18% of nickel, 6% of molybdenum, and 0.2% of nitrogen. This alloy has a high Pitting Resistance Equivalent Number (PREN > 42.5), thus making the alloy highly resistant to localized attack in seawater and hostile chemical environments. The fittings have outstanding mechanical properties with a tensile strength of approximately 650 MPa and yield strength of 300 MPa. The nitrogen content improves strength and structural stability, while minimal carbon content prevents intergranular corrosion, particularly after welding.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

SMO 254 Buttweld Fittings Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS	JIS	SIS	GOST	AFNOR	EN
SMO 254	1.4547	S31254	–	2378	–	Z1 CNDU 20.18.06Az	X1CrNiMoCuN20-18-7

Why Choose SMO 254 Buttweld Fittings from Meet Fittings?

SMO 254 Buttweld Fittingsfrom Meet Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

UNS S31254 Stub End Uk, ANSI B16.5 SMO 254 Pipe Fittings Chennai, SMO 254 Pipe Bend Stockist in Chennai, SMO 254 Pipe Nipple Manufacturer & Exporter in Chennai, SMO 1.4547 Butt Weld Pipe Fittings in India, SMO 254 Pipe Two Joint Pipe Fittings Chennai, 254 SMO Pipe Welded Fittings Manufacturers in India, SMO 254 Stainless Steel 254 Pipe Butt weld Fittings In India, ASTM A240 SMO 254 Pipe Butt Weld Fittings Supplier in Chennai, India.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

SMO 254 Buttweld Fittings provide excellent resistance to pitting, crack corrosion, and stress corrosion cracking, making them ideal for harsh environments such as chemical, marine and offshore applications. These materials also provide excellent weldability and formability, resulting in reliable and durable connections. SMO 254’s ability to withstand extreme temperature and pressure fluctuations adds great versatility under challenging industrial conditions. Its overall durability and reliability reduce maintenance and replacement costs.

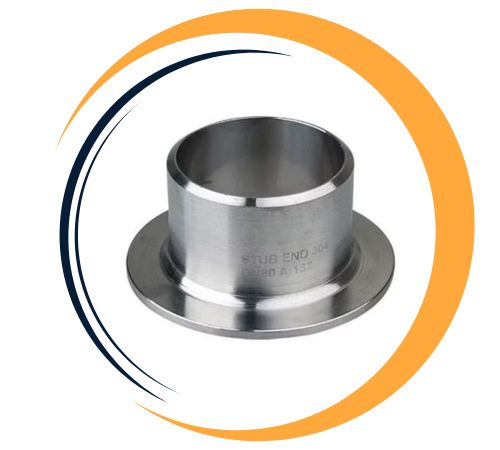

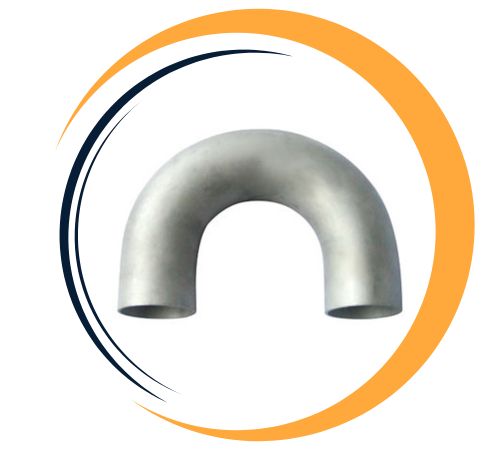

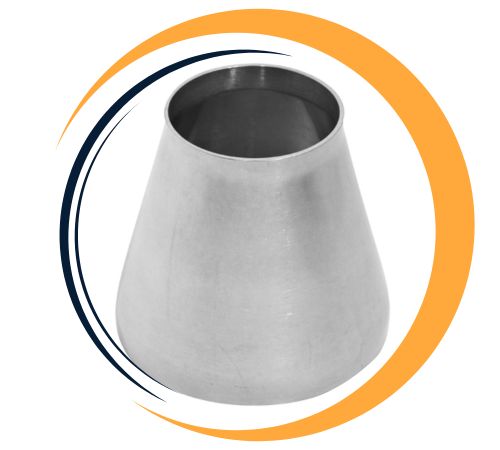

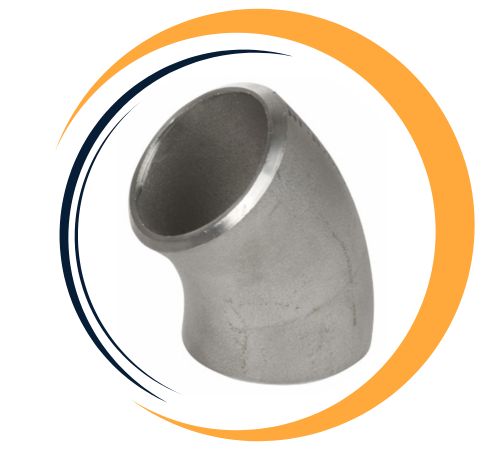

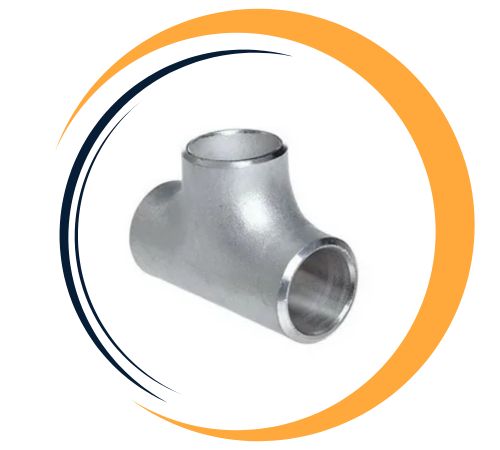

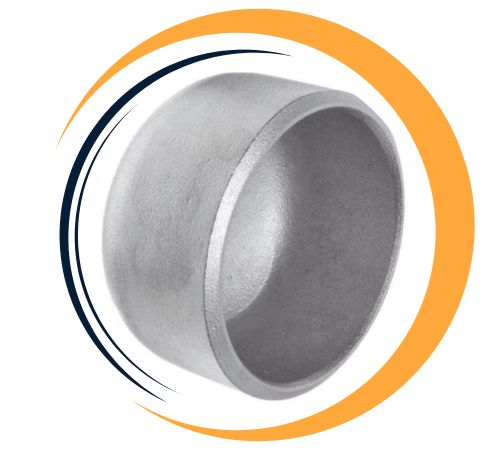

Types of SMO 254 Buttweld Fittings

SMO 254 Buttweld Fittings Dimensions Chart

Nom. Pipe Size	90° Elbows			45° Elbows		180° Return Bends				Tees		Lap Joint Stub Ends			Caps
	Long Rad.	Short Rad.	3R	Long Rad.	3R	Long Rad.		Short Rad.		C	M	F	G	R	E
	A	A	A	B	B	O	K	O	K	C	M	F	G	R	E
½	1.50	–	–	0.62	–	3.00	1.88	–	–	1.00	1.00	3.00	1.38	0.12	1.00
¾	1.50	–	–	0.75	–	3.00	2.00	–	–	1.12	1.12	3.00	1.69	0.12	1.00
1	1.50	1.00	–	0.88	–	3.00	2.19	2.00	1.62	1.50	1.50	4.00	2.00	0.12	1.50
1¼	1.88	1.25	–	1.00	–	3.75	2.75	2.50	2.06	1.88	1.88	4.00	2.50	0.19	1.50
1½	2.25	1.50	–	1.12	–	4.50	3.25	3.00	2.44	2.25	2.25	4.00	2.88	0.25	1.50
2	3.00	2.00	6.00	1.38	2.50	6.00	4.19	4.00	3.19	2.50	2.50	6.00	3.62	0.31	1.50
2½	3.75	2.50	7.50	1.75	3.12	7.50	5.19	5.00	3.94	3.00	3.00	6.00	4.12	0.31	1.50
3	4.50	3.00	9.00	2.00	3.75	9.00	6.25	6.00	4.75	3.38	3.38	6.00	5.00	0.38	2.00
3½	5.25	3.50	10.50	2.25	–	10.50	7.25	7.00	5.50	3.75	3.75	6.00	5.50	0.38	2.50
4	6.00	4.00	12.00	2.50	5.00	12.00	8.25	8.00	6.25	4.12	4.12	6.00	6.19	0.44	2.50
5	7.50	5.00	15.00	3.12	–	15.00	10.31	10.00	7.75	4.88	4.88	8.00	7.31	0.44	3.00
6	9.00	6.00	18.00	3.75	7.44	18.00	12.31	12.00	9.31	5.62	5.62	8.00	8.50	0.50	3.50
8	12.00	8.00	24.00	5.00	9.94	24.00	16.31	16.00	12.31	7.00	7.00	8.00	10.62	0.50	4.00
10	15.00	10.00	30.00	6.25	12.44	30.00	20.38	20.00	15.38	8.50	8.50	10.00	12.75	0.50	5.00
12	18.00	12.00	36.00	7.50	14.88	36.00	24.38	24.00	18.38	10.00	10.00	10.00	15.00	0.50	6.00
14	21.00	14.00	42.00	8.75	17.38	42.00	28.00	28.00	21.00	11.00	11.00	12.00	16.25	0.50	6.50
16	24.00	16.00	48.00	10.00	19.88	48.00	32.00	32.00	24.00	12.00	12.00	12.00	18.50	0.50	7.00
18	27.00	18.00	54.00	11.25	22.38	54.00	36.00	36.00	27.00	13.50	13.50	12.00	21.00	0.5	8.00
20	30.00	20.00	60.00	12.50	24.88	60.00	40.00	40.00	30.00	15.00	15.00	12.00	23.00	0.50	9.00
22	33.00	22.00	66.00	13.50	27.31	66.00	44.00	44.00	33.00	16.50	16.50	12.00	25.25	0.50	10.00
24	36.00	24.00	72.00	15.00	29.81	72.00	48.00	48.00	36.00	17.00	17.00	12.00	27.25	0.50	10.50
26	39.00	–	78.00	16.00	32.31	–	–	–	–	19.50	19.50	–	–	–	10.50
28	42.00	–	84.00	17.25	34.75	–	–	–	–	20.50	20.50	–	–	–	10.50
30	45.00	–	90.00	18.50	37.25	–	–	–	–	22.00	22.00	–	–	–	10.50
32	48.00	–	–	19.75	–	–	–	–	–	23.50	23.50	–	–	–	10.50
34	51.00	–	102.00	21.00	42.25	–	–	–	–	25.00	25.00	–	–	–	10.50
36	54.00	–	108.00	22.25	44.69	–	–	–	–	26.50	26.50	–	–	–	10.50
38	57.00	–	114.00	23.62	47.25	–	–	–	–	28.00	28.00	–	–	–	12.00
40	60.00	–	120.00	24.88	49.75	–	–	–	–	29.50	29.50	–	–	–	12.00
42	63.00	–	126.00	26.00	52.19	–	–	–	–	30.00	28.00	–	–	–	12.00
44	66.00	–	132.00	27.38	54.69	–	–	–	–	32.00	30.00	–	–	–	13.50
46	69.00	–	138.00	28.62	57.19	–	–	–	–	33.50	31.50	–	–	–	13.50
48	72.00	–	144.00	29.88	59.69	–	–	–	–	35.00	33.00	–	–	–	13.50

All dimensions given in inches for common diameters and wall thicknesses. Dimensions in accordance with ASME B16.9. Other sizes, schedules and wall thicknesses also available.

Are Custom Sizes Available for SMO 254 Buttweld Fittings?

Yes, custom sizes for SMO 254 Buttweld Fittings are available at Meet Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@meetfitings.co.in.

ASTM A403 SMO 254 Butt Weld Cross in India, SMO 1.4547 Buttweld Pipe Fittings Chennai, SMO 254 Butt Weld Pipe Cap Chennai, SMO 254 Eccentric Reducer Chennai, Stainless Steel SMO 254 Equal Tee India, 254 SMO Reducer in Chennai, SMO 254 SR Elbow Exporter in India,

Application Industry of SMO 254 Buttweld Fittings

SMO 254 Buttweld Fittings are suitable for use in applications requiring high chlorides concentration, seawater, or harsh chemicals. They find extensive application in desalination plants, offshore platforms, heat exchangers, pulp and paper bleaching loops, flue gas desulfurization, and chemical tankers. The fittings provide tough, leak-resistant connections withstanding high-stress and temperature conditions. Their strength, corrosion resistance, and weldability make them last a long time with minimal maintenance, which is why SMO 254 is the choice for demanding industrial applications where performance and reliability are paramount.
