Titanium Gr 2 Forged Fittings Manufacturer and Supplier in Chennai, India
Chennai, India is home to a number of reputable manufacturers and suppliers of **Titanium Gr 2 Forged Fittings**. These companies provide high-quality, corrosion-resistant components that are perfect for critical industrial applications. Renowned for their precision engineering and commitment to global standards like ASTM B381, the fittings include elbows, tees, couplings, unions, and reducers. Titanium Grade 2, which is pure titanium without any alloys, is particularly valued for its impressive corrosion resistance, moderate strength, and excellent weldability. Manufacturers in Chennai cater to various sectors, including chemical processing, marine, desalination, and medical equipment, ensuring dependable performance, timely deliveries, and customized solutions that meet client needs.
Table of Contents
Titanium Gr.2 Threaded Fittings India, Grade 2 Titanium Forged Fittings Chennai, Titanium Grade 2 High Pressure Forged Fittings Chennai, Titanium Gr 2 Forged Fittings Manufacturer Chennai, Ti Alloy Gr 2 Forged Pipe Fittings India, Ti Gr2 Socket Weld Fittings Chennai, Grade 2 Titanium Forged Fittings Supplier in India, India.
Titanium Gr 2 Forged Fittings Specification
| Standards | ASTM B381 / ASME SB381 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Thread | NPT, BSPT, BSPP |
| Test Certificates |
|

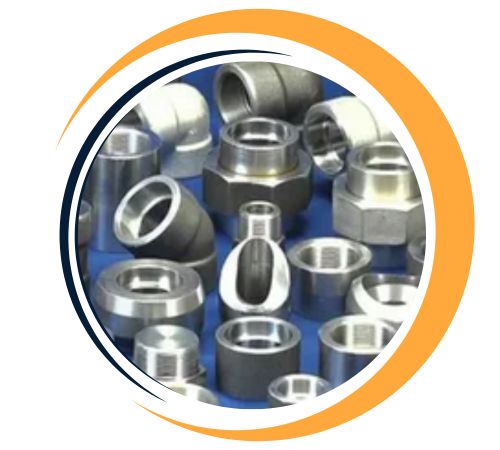

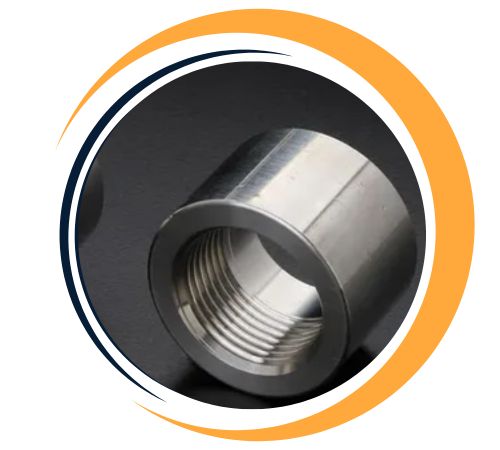

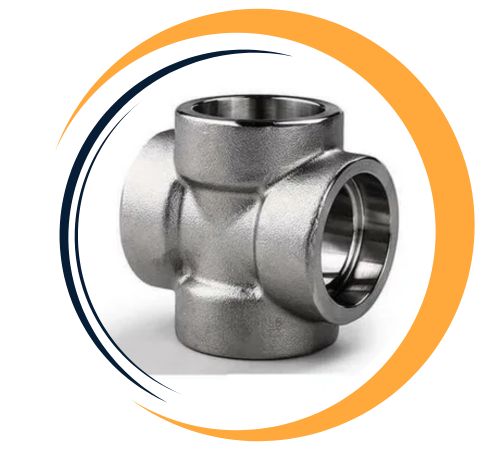

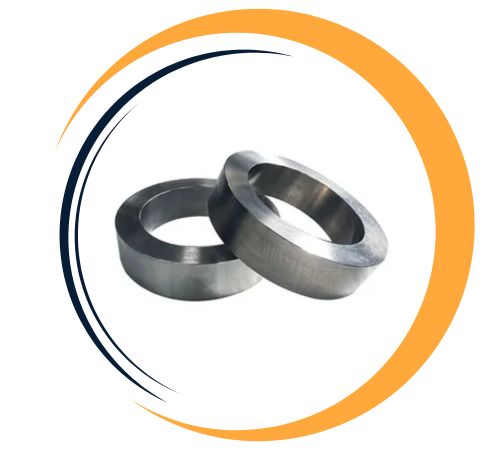

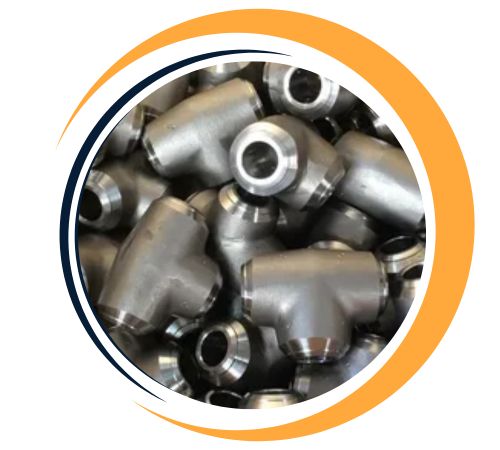

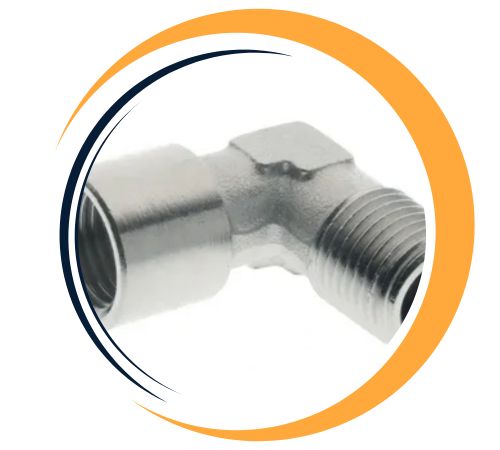

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducer Inserts, Barrel Nipple, Unions, Bushing, Socket Weld / Screwed-Threaded Fittings, Plugs |
Equivalent Grades Of Titanium Gr 2 Forged Fittings
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
Chemical Composition of Titanium Alloy Gr2 Forged Fittings
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
Mechanical Properties of Titanium Grade 2 Forged Fittings
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
**Titanium Gr 2 Forged Fittings** are made from commercially pure titanium, containing trace elements like iron, oxygen, carbon, nitrogen, and hydrogen. The typical chemical makeup consists of about 99.2% titanium. These fittings boast a tensile strength of around 344 MPa and a yield strength of approximately 275 MPa, along with remarkable corrosion resistance, especially in oxidizing and mildly reducing environments. The alloy is lightweight, has a high melting point (around 1665°C), and offers excellent ductility and formability. These characteristics make Titanium Grade 2 a great choice for applications that require corrosion resistance without needing extreme strength.
UNS R50400 Forged Fittings India, Titanium Alloy Gr 2 Forged Fittings Chennai, 3.7035 Forged Fittings Chennai, Ti Grade 2 Forged Threaded Fittings Chennai, ANSI B16.11 Titanium Gr 2 Forged Fittings India, Titanium Gr 2 Socket weld Fittings Chennai, Titanium Gr 2 Forged Fittings Supplier in India, India.
Largest Titanium Gr 2 Forged Fittings Supplier in Chennai, India
Meet Fittings is a leading supplier of Titanium Gr 2 Forged Fittings in Chennai, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
If You Are Looking To Buy High Quality
Why Choose Titanium Gr 2 Forged Fittings from Meet Fittings?
Titanium Gr 2 Forged Fittings from Meet Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Titanium R50400 Forged Fittings Dimension
| Nom, Pipe Size | Sock, Bore Diameter B | Depth of Sock, Min | Wall Thickness Minimum | Bore Diameter of Fitting D | Centre to Bottom of Socket | Laying Lengths | Tolerances, ± | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3000# | 6000# | 90º Ells, Tee & Crosses | 45º Ell | Couplings | Half Couplings | ||||||||||||
| A | A | E | F | A | E | F | |||||||||||
| Sock, C | Body G | Sock C | Body G | 3000# | 6000# | 3000# | 6000# | 3000# | 6000# | ||||||||
| 1/8” | .420 .430 | 3/8 | .125 | .095 | .135 | .124 | .254 .284 | .141 | 7/16 | 7/16 | 5/16 | 5/16 | 1/4 | 5/8 | .03 | .06 | .03 |
| 1/4 | .555 .565 | 3/8 | .130 | .119 | .158 | .145 | .349 .379 | .235 | 7/16 | 17/32 | 5/16 | 5/16 | 1/4 | 5/8 | .03 | .06 | .03 |
| 3/8 | .690 .700 | 3/8 | .138 | .126 | .172 | .158 | .478 .508 | .344 | 17/32 | 5/8 | 5/16 | 7/16 | 1/4 | 11/16 | .06 | .12 | .06 |
| 1/2 | .855 .865 | 3/8 | .161 | .147 | .204 | .188 | .607 .637 | .451 | 5/8 | 3/4 | 7/16 | 1/2 | 3/8 | 7/8 | .06 | .12 | .06 |
| 3/4 | 1.065 1.075 | 1/2 | .168 | .154 | .238 | .219 | .809 .839 | .599 | 3/4 | 7/8 | 1/2 | 9/16 | 3/8 | 15/16 | .06 | .12 | .06 |
| 1 | 1.330 1.340 | 1/2 | .196 | .179 | .273 | .250 | 1.034 1.064 | .800 | 7/8 | 1-1/16 | 9/16 | 11/16 | 1/2 | 1-1/8 | .08 | .16 | .08 |
| 1-1/4 | 1.675 1.685 | 1/2 | .208 | .191 | .273 | .250 | 1.365 1.395 | 1.145 | 1-1/16 | 1-1/4 | 11/16 | 13/16 | 1/2 | 1-3/16 | .08 | .16 | .08 |
| 1-1/2 | 1.915 1.925 | 1/2 | .218 | .200 | .307 | .281 | 1.595 1.625 | 1.323 | 1-1/4 | 1-1/2 | 13/16 | 1 | 1/2 | 1-1/4 | .08 | .16 | .08 |
| 2 | 2.406 2.416 | 5/8 | .238 | .218 | .374 | .344 | 2.052 2.082 | 1.674 | 1-1/2 | 1-5/8 | 1 | 1-1/8 | 3/4 | 1-5/8 | .08 | .16 | .08 |
| 2-1/2 | 2.906 2.921 | 5/8 | .301 | .276 | .375 | 2.439 2.499 | 1-5/8 | 1-1/8 | 3/4 | 1-11/16 | .10 | .20 | .10 | ||||
| 3 | 3.535 3.550 | 5/8 | .327 | .300 | .438 | 3.038 3.098 | 2-1/4 | 1-1/4 | 3/4 | 1-3/4 | .10 | .20 | .10 | ||||
| 4 | 4.545 4.560 | 3/4 | .368 | .337 | .531 | 3.996 4.055 | 2-5/8 | 1-5/8 | 3/4 | 1-7/8 | .10 | .20 | .10 | ||||
Manufacturing Standards of Titanium Grade 2 Forged Fittings
| ASTM B381 / SB381 | Standard Specification for Titanium and Titanium Alloy Forgings |
| BS21 | Threading. |
| BS3799 | Specification for Forged fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged fittings socket-weld and threaded. Socket Weld and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Titanium fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Titanium Gr 2 Forged Pipe Cap Stockist India, ASTM B381 Titanium Gr 2 Socket weld Pipe Elbow United kigndom, Titanium Gr 2 Forged Elbow Chennai, Ti Grade 2 Coupling Chennai, ASME SB 381 Titanium Gr 2 Union India, Titanium Gr 2 Forged Equal Tee Chennai, Ti Grade 2 Bushing India, Titanium Alloy Gr 2 Plug India, Titanium Gr 2 Welding Boss Exporter in Chennai, India.
Customer Support
Largest Inventory
On Time Deliveries
ISO Certified
Titanium Gr 2 Forged Fittings offer numerous advantages, including excellent corrosion resistance, particularly in oxidizing and mildly reducing environments, making them ideal for chemical and marine applications. They are lightweight yet exceptionally strong, with a high strength-to-weight ratio. These fittings also provide outstanding biocompatibility, making them suitable for medical and aerospace applications. Their high ductility allows for easy fabrication, while their durability ensures a long service life even under extreme conditions. Additionally, Titanium Gr 2’s thermal conductivity and resistance to high temperatures enhance its versatility across various industries.
Types of Titanium Gr 2 Forged Fittings
Are Custom Sizes Available for Titanium Gr 2 Forged Fittings?
Yes, custom sizes for Titanium Gr 2 Forged Fittings are available at Meet Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@meetfitings.co.in.
Titanium Gr.2 Threaded Fittings India, Grade 2 Titanium Forged Fittings Chennai, Titanium Grade 2 High Pressure Forged Fittings Chennai, Titanium Gr 2 Forged Fittings Manufacturer Chennai, Ti Alloy Gr 2 Forged Pipe Fittings India, Ti Gr2 Socket Weld Fittings Chennai, Grade 2 Titanium Forged Fittings Supplier in India, India.
Application Industry of Titanium Gr 2 Forged Fittings
**Titanium Gr 2 Forged Fittings** find their place in industries where corrosion resistance is crucial, but ultra-high strength isn’t a top priority. In the chemical and petrochemical sectors, they are used in systems that handle chlorides, acids, and seawater. The marine industry relies on them in desalination plants, piping systems, and shipbuilding due to their resistance to saltwater corrosion. They are also utilized in heat exchangers, condensers, and reactors. In the medical field, Grade 2 titanium is favored for surgical instruments and equipment because of its biocompatibility. Additionally, these fittings are suitable for food processing, pulp and paper, and other applications.
