Titanium Gr 5 Forged Fittings Manufacturer and Supplier in Chennai, India
Chennai, India, is a hub for some of the most respected manufacturers and suppliers of meet fittings, particularly those specializing in high-performance alloys like Titanium Grade 5 forged fittings. These fittings are celebrated for their impressive strength-to-weight ratio, resistance to corrosion, and overall durability, making them perfect for industries with demanding requirements. The trusted manufacturers in Chennai provide a diverse selection of forged fittings, including elbows, tees, couplings, and unions, all crafted from Titanium Grade 5. With a strong commitment to quality and adherence to international standards, these suppliers serve both local and global markets, ensuring timely deliveries and tailored solutions to meet various industrial needs.
Table of Contents
Titanium Gr 5 Forged Fittings Manufacturer India, Ti Gr5 Socket Weld Fittings United kimgdom, Grade 5 Titanium Forged Fittings Chennai, Titanium Gr.5 Threaded Fittings Chennai, Grade 5 Titanium Forged Fittings India, Titanium Grade 5 High Pressure Forged Fittings Chennai, Ti Alloy Gr 5 Forged Pipe Fittings Supplier in India.
Titanium Gr 5 Forged Fittings Specification
| Standards | ASTM B381 / ASME SB381 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Thread | NPT, BSPT, BSPP |
| Test Certificates |
|
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducer Inserts, Barrel Nipple, Unions, Bushing, Socket Weld / Screwed-Threaded Fittings, Plugs |
Equivalent Grades Of Titanium Gr 5 Forged Fittings
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | R56400 |
Chemical Composition of Titanium Alloy Gr 5 Forged Fittings
| Element | C | V | N | Al | Ti | Fe | O |
| Titanium Gr.5 | – | 4 min | – | 6 min | 90 min | 0.25 max | 0.2 max |
Mechanical Properties of Titanium Grade 5 Forged Fittings
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness (Brinell) |
| Titanium Gr.5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % | – |
Titanium Grade 5 Forged Fittings are created from an alloy that consists of about 90% titanium, 6% aluminum, and 4% vanadium. This unique blend results in high strength, outstanding corrosion resistance, and good weldability. On the mechanical side, the alloy boasts a tensile strength of roughly 950 MPa, a yield strength of around 880 MPa, and a melting point close to 1660°C. It also retains good ductility and fatigue resistance, even when faced with extreme temperatures and stress. These characteristics make Titanium Grade 5 forged fittings perfect for critical applications in aerospace, marine, chemical processing, and medical fields.
ASTM B381 Titanium Gr 5 Socket Weld Fittings Supplier India, Titanium Alloy Grade 5 Socket Weld Equal Tee Chennai, Titanium Grade 5 Forged Fittings Chennai, Titanium GR 5 Forged Fittings Chennai, ASTM B381 Titanium Gr 5 Forged Tee Exporter India, ASTM B381 Titanium Alloy Grade 5 Threaded Fittings Chennai, Ti Alloy Gr 5 Forged Threaded 90 deg Elbow India, Ti Alloy Grade 5 Forged Fittings Manufacturer in Chennai, India.
Largest Titanium Gr 2 Forged Fittings Supplier in Chennai, India
Meet Fittings is a leading supplier of Titanium Gr 5 Forged Fittings in Chennai, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
If You Are Looking To Buy High Quality
Why Choose Titanium Gr 5 Forged Fittings from Meet Fittings?
Titanium Gr 5 Forged Fittings from Meet Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Titanium Gr 5 Forged Fittings Dimension
| Nom, Pipe Size | Sock, Bore Diameter B | Depth of Sock, Min | Wall Thickness Minimum | Bore Diameter of Fitting D | Centre to Bottom of Socket | Laying Lengths | Tolerances, ± | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3000# | 6000# | 90º Ells, Tee & Crosses | 45º Ell | Couplings | Half Couplings | ||||||||||||
| A | A | E | F | A | E | F | |||||||||||
| Sock, C | Body G | Sock C | Body G | 3000# | 6000# | 3000# | 6000# | 3000# | 6000# | ||||||||
| 1/8” | .420 .430 | 3/8 | .125 | .095 | .135 | .124 | .254 .284 | .141 | 7/16 | 7/16 | 5/16 | 5/16 | 1/4 | 5/8 | .03 | .06 | .03 |
| 1/4 | .555 .565 | 3/8 | .130 | .119 | .158 | .145 | .349 .379 | .235 | 7/16 | 17/32 | 5/16 | 5/16 | 1/4 | 5/8 | .03 | .06 | .03 |
| 3/8 | .690 .700 | 3/8 | .138 | .126 | .172 | .158 | .478 .508 | .344 | 17/32 | 5/8 | 5/16 | 7/16 | 1/4 | 11/16 | .06 | .12 | .06 |
| 1/2 | .855 .865 | 3/8 | .161 | .147 | .204 | .188 | .607 .637 | .451 | 5/8 | 3/4 | 7/16 | 1/2 | 3/8 | 7/8 | .06 | .12 | .06 |
| 3/4 | 1.065 1.075 | 1/2 | .168 | .154 | .238 | .219 | .809 .839 | .599 | 3/4 | 7/8 | 1/2 | 9/16 | 3/8 | 15/16 | .06 | .12 | .06 |
| 1 | 1.330 1.340 | 1/2 | .196 | .179 | .273 | .250 | 1.034 1.064 | .800 | 7/8 | 1-1/16 | 9/16 | 11/16 | 1/2 | 1-1/8 | .08 | .16 | .08 |
| 1-1/4 | 1.675 1.685 | 1/2 | .208 | .191 | .273 | .250 | 1.365 1.395 | 1.145 | 1-1/16 | 1-1/4 | 11/16 | 13/16 | 1/2 | 1-3/16 | .08 | .16 | .08 |
| 1-1/2 | 1.915 1.925 | 1/2 | .218 | .200 | .307 | .281 | 1.595 1.625 | 1.323 | 1-1/4 | 1-1/2 | 13/16 | 1 | 1/2 | 1-1/4 | .08 | .16 | .08 |
| 2 | 2.406 2.416 | 5/8 | .238 | .218 | .374 | .344 | 2.052 2.082 | 1.674 | 1-1/2 | 1-5/8 | 1 | 1-1/8 | 3/4 | 1-5/8 | .08 | .16 | .08 |
| 2-1/2 | 2.906 2.921 | 5/8 | .301 | .276 | .375 | 2.439 2.499 | 1-5/8 | 1-1/8 | 3/4 | 1-11/16 | .10 | .20 | .10 | ||||
| 3 | 3.535 3.550 | 5/8 | .327 | .300 | .438 | 3.038 3.098 | 2-1/4 | 1-1/4 | 3/4 | 1-3/4 | .10 | .20 | .10 | ||||
| 4 | 4.545 4.560 | 3/4 | .368 | .337 | .531 | 3.996 4.055 | 2-5/8 | 1-5/8 | 3/4 | 1-7/8 | .10 | .20 | .10 | ||||
Manufacturing Standards of Titanium Grade 5 Forged Fittings
| ASTM B381 / SB381 | Standard Specification for Titanium and Titanium Alloy Forgings |
| BS21 | Threading. |
| BS3799 | Specification for Forged fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged fittings socket-weld and threaded. Socket Weld and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Titanium fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Titanium Alloy Grade 5 Plug Dealer India, Grade 5 Titanium Socket Weld Union Stockists Chennai, DIN 3.7035 Forged Pipe Fittings Chennai, ASTM SB381 Ti Alloy Gr 5 High Pressure Forged Pipe Fittings Chennai, Titanium UNS R56400 Hex Bushing India, Ti Alloy Gr 5 Socket Weld 90 deg Elbow Trader Chennai, ASME SB381 Alloy Gr 5 Forged Fittings Supplier in India.
Customer Support
Largest Inventory
On Time Deliveries
ISO Certified
Titanium Gr 5 forged fittings offer exceptional advantages, including high strength-to-weight ratio, excellent corrosion resistance, and superior mechanical properties. They resist pitting, crevice corrosion, and stress corrosion cracking, making them ideal for harsh environments like marine, chemical, and aerospace applications. With a high tensile strength of approximately 895 MPa, they are lightweight yet robust, reducing overall system weight without compromising durability. Titanium Gr 5 retains strength at elevated temperatures, enhancing performance in demanding conditions. Additionally, it is biocompatible, making it suitable for medical applications like implants and prosthetics.

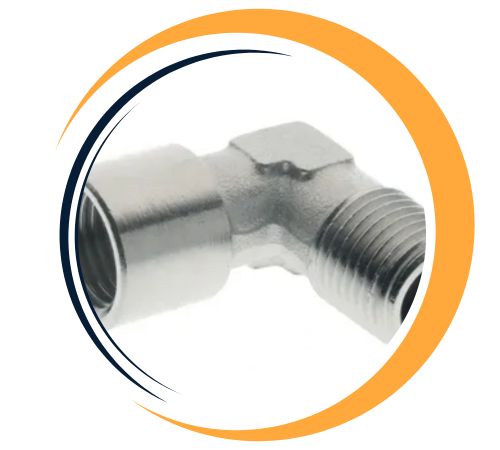

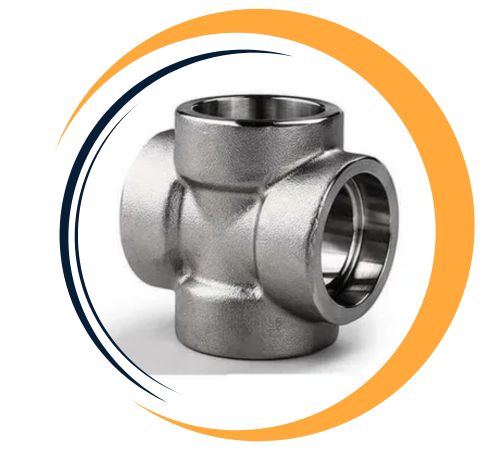

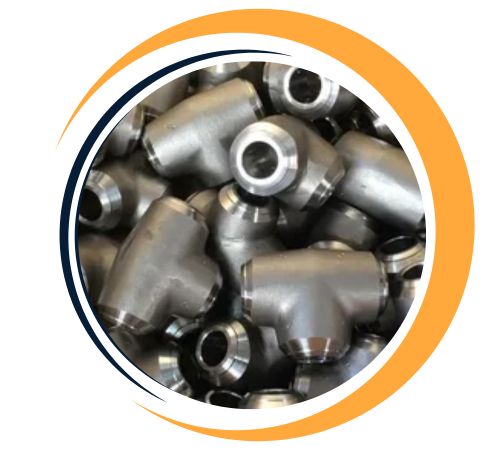

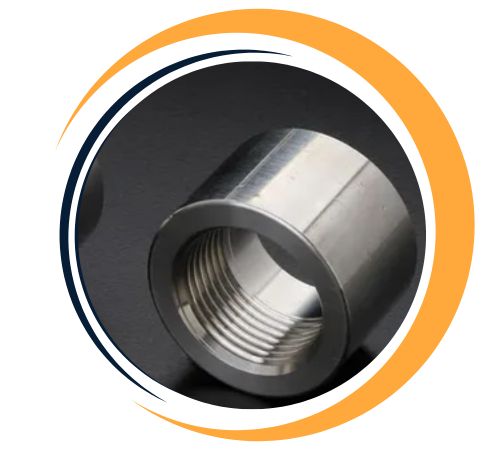

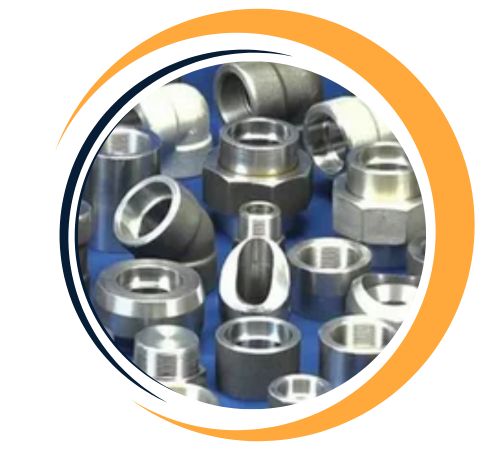

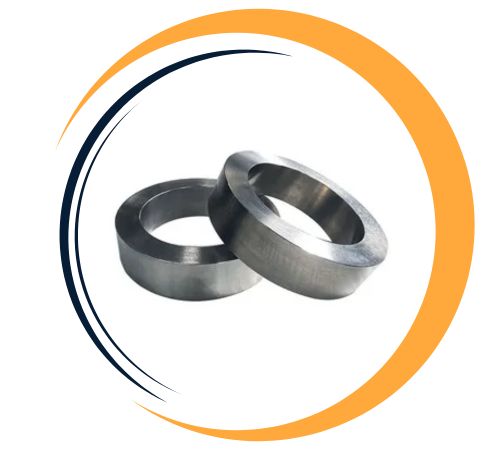

Types of Titanium Gr 5 Forged Fittings
Are Custom Sizes Available for Titanium Gr 5 Forged Fittings?
Yes, custom sizes for Titanium Gr 2 Forged Fittings are available at Meet Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@meetfitings.co.in.
Titanium Gr 5 Forged Fittings Manufacturer India, Ti Gr5 Socket Weld Fittings United kimgdom, Grade 5 Titanium Forged Fittings Chennai, Titanium Gr.5 Threaded Fittings Chennai, Grade 5 Titanium Forged Fittings India, Titanium Grade 5 High Pressure Forged Fittings Chennai, Ti Alloy Gr 5 Forged Pipe Fittings Supplier in India.
Application Industry of Titanium Gr 5 Forged Fittings
In various industries where strength, lightweight design, and corrosion resistance are crucial, Titanium Grade 5 Forged Fittings are widely utilized. In aerospace, they find their place in hydraulic systems, engine components, and structural parts. The marine sector relies on these fittings for seawater handling and offshore structures, thanks to their remarkable resistance to saltwater corrosion. In chemical processing, they manage corrosive fluids and gases effectively. The medical industry employs them in surgical instruments and implants. Moreover, they are highly regarded in power generation and oil & gas sectors, ensuring reliable performance even in harsh and high-pressure environments.
